Mobile and stationary single-station solutions or multi-station systems

Collection volume ranging from 200 to 2,000 liters in single or double foil bags
Our harmonized technology helps realize projects which are aligned with spatial and internal disposal preferences in close cooperation with our customers.

Foil bags, roller containers or lead frames

Depending on the type and scope of the waste material, suitable collection containers will be used.
We will also gladly take our customers’ internal solutions and integrate them into our systems.

Single-station solution for the extraction of edge trimmings, lead frames and other punching waste. Collection of the material in foil bags, BIG BAG, roller containers or drawers. The ARCUTT crushing technology cuts all endless waste into small pieces in order to achieve the best possible collection volume.

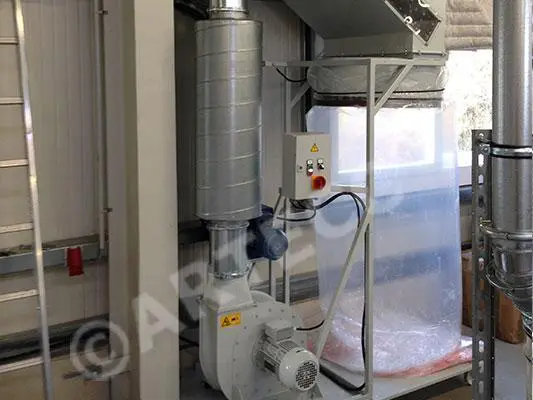

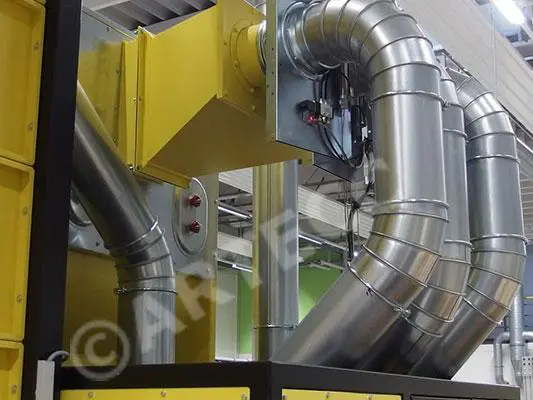

Single-station and multi-station

Cut’n Collect can help to remove edge trimmings from several production machines. For lead frames, only one printing machine must be connected.

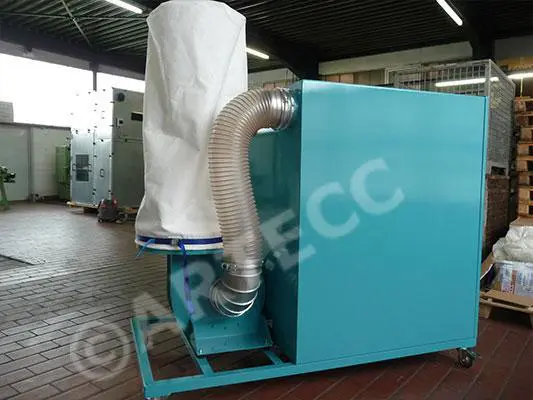

Contactless extraction
For some applications, fans are installed on the clean gas side due to technical reasons.
This prevents contact between solids or dusty air with the fan.

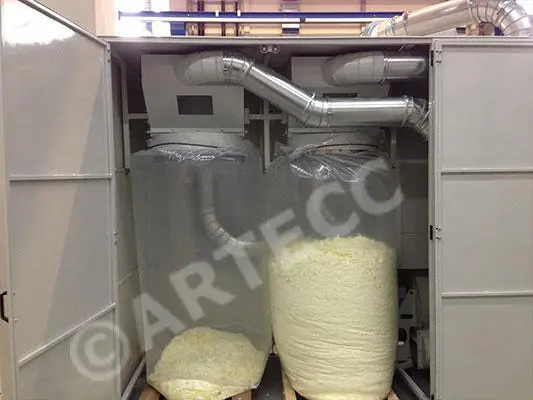

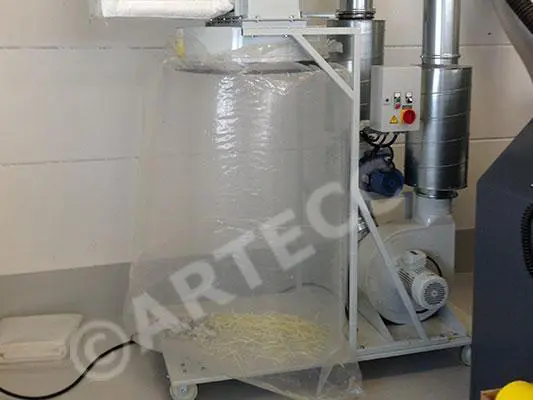

Collection volume

Depending on the machine speed and material used, smaller or large collection volumes may be used. Double bag systems bypass the shut-down of the extraction system for the emptying process of the filled containers, ensuring continuous production.

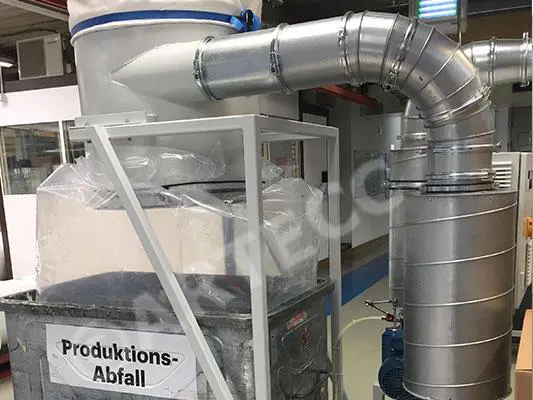

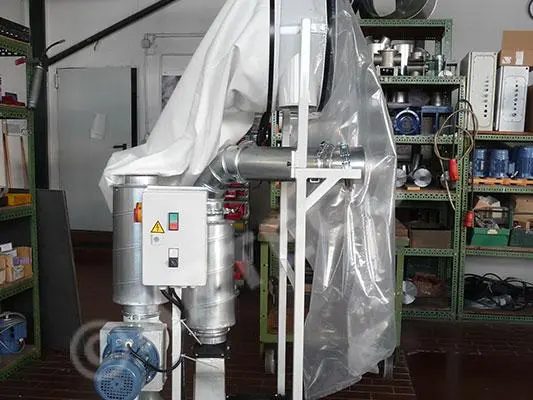

Layout

System construction is always subject to the most versatile requirements. Important components on the customer side include the power requirements, available space and downstream disposal paths and will always be integrated into our extraction systems.

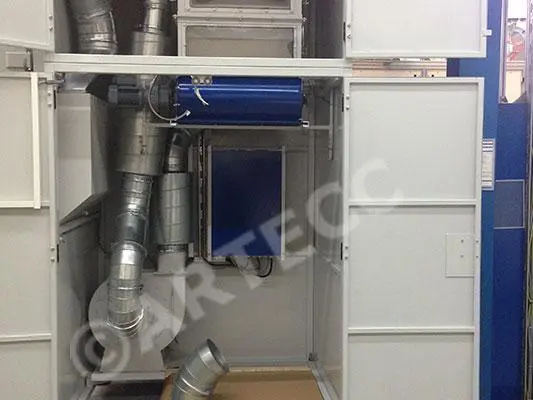

Unpressurized discharge

Material snippets are removed into open containers via cell rotary feeders without pressure. That way, all customer-owned collection containers can be used without any problems, making the acquisition of new disposal systems and containers unnecessary.

Extraction systems of the Cut’n Collect series

Extraction systems of the Cut’n Collect series

Contactless extraction

Contactless extraction

Collection volume

Collection volume

Layout

Layout

Unpressurized discharge

Unpressurized discharge
